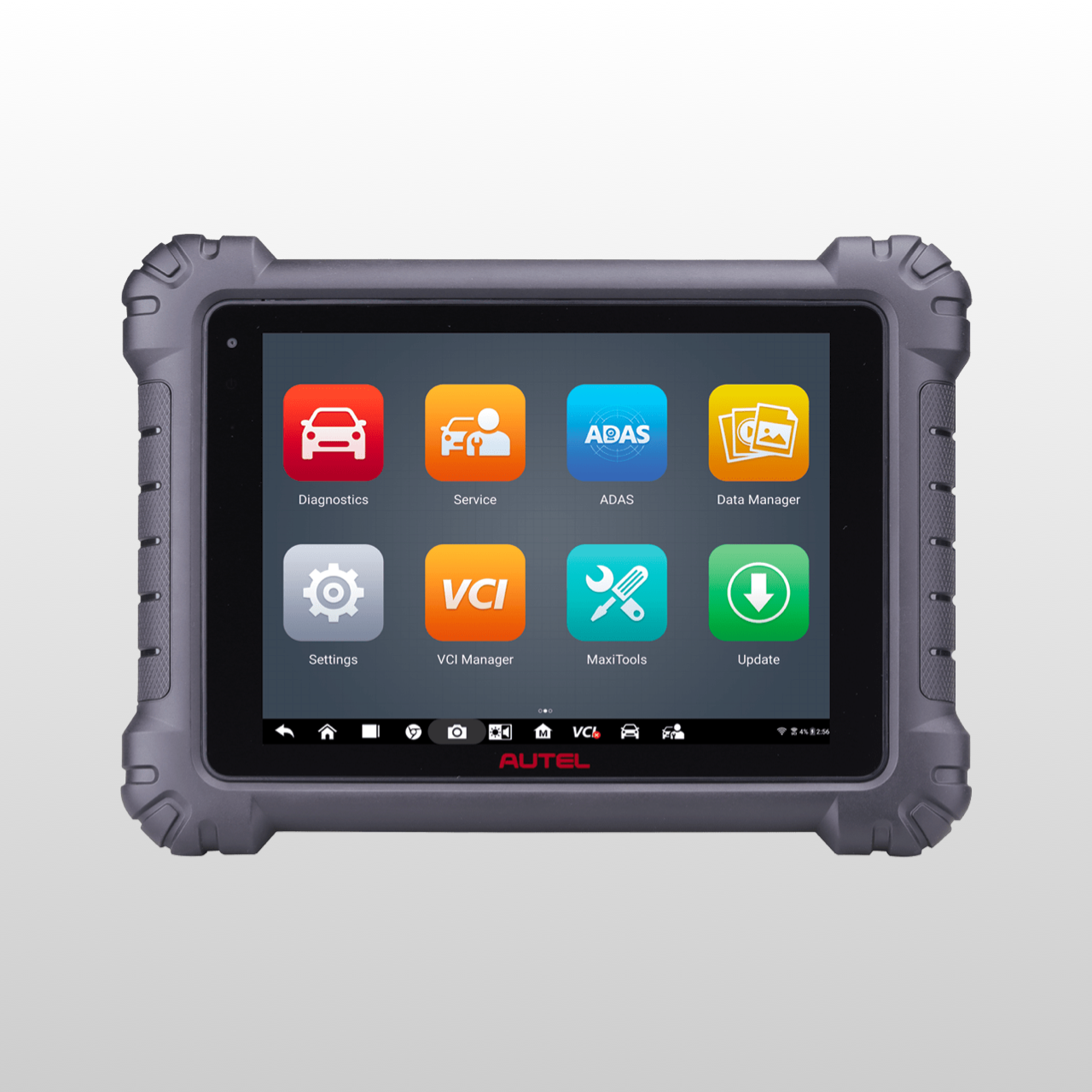

MaxiSYS MS909
Product information
£2,995.00 excl. VAT
Product Description
The MaxiSYS MS909 is a cutting-edge diagnostic tablet tailored for automotive professionals. This 9.7-inch touchscreen Android-based device is a true powerhouse, driven by an Octa-core processor, combining a 2.3GHz Quad and a 1.7GHz Quad, ensuring seamless performance.
It offers a substantial 128GB of memory to accommodate your diagnostic needs, and it comes equipped with an advanced Vehicle Communication Interface (VCI) that supports the latest communication protocols such as DoIP, D-PDU, and Mega CAN.

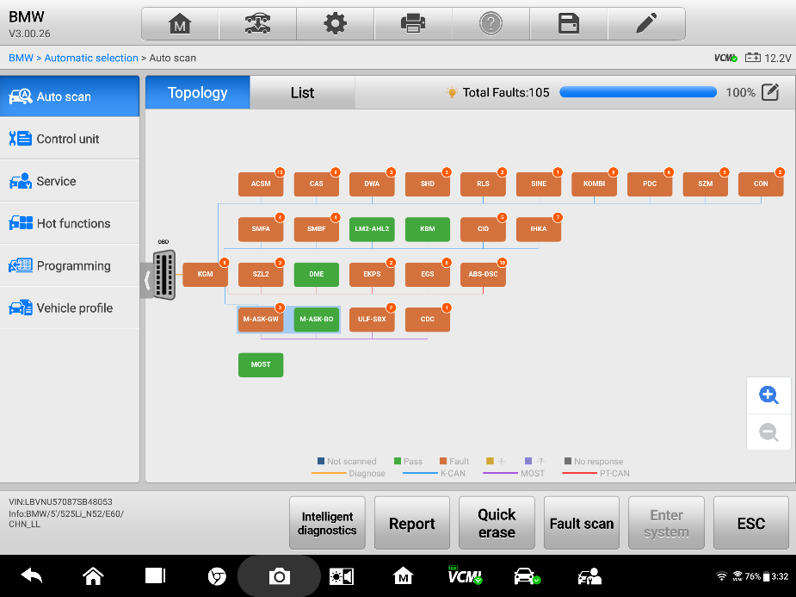

One of the standout features of the MS909 is its topology module mapping capability, a valuable asset for supported vehicles.
Moreover, the MS909 is tailored to meet your practical needs, with a rechargeable Lithium battery providing an impressive 8 hours of uninterrupted use. It's also equipped with front and rear cameras, adding to its functionality. This diagnostic tablet is designed to be an invaluable companion for automotive professionals looking to streamline their diagnostic processes and enhance their capabilities.
Product Comparison
MaxiDAS DS900 EUBT
£995.00 excl. VAT
|
MaxiSYS MS906S Pro EU
£1,795.00 excl. VAT
|
MaxiSYS MS909
£2,995.00 excl. VAT
|
MaxiSYS MS919
£3,995.00 excl. VAT
|
MaxiSYS Ultra
£5,250.00 excl. VAT
|
|
| CPU | Rockchip RK3566 Quad corex 4 x 1.8GHz | Qualcomm Octa-Core 2.3GHz + 1.7GHz | Samsung Exynos 8859v Octa-Core 2.3GHz + 1.7GHz | Samsung Exynos 8859v Octa-Core 2.3GHz + 1.7GHz | Samsung Exynos 8859v Octa-Core 2.3GHz + 1.7GHz |
|---|---|---|---|---|---|
| Operating System | Android 11 | Android 10 | Android 7.0 | Android 7.0 | Android 7.0 |
| Device Memory | 64GB SSD / 4GB RAM | 128GB SSD / 4GB RAM | 128GB SSD / 4GB RAM | 128GB SSD / 4GB RAM | 256GB SSD / 4GB RAM |
| Captive Touch-screen | 8" 1024x768DPI / TFT-LCD Touch-screen | 8" 1920x1200DPI / TFT-LCD Touch-screen | 9.7" 2048x1536DPI / TFT-LCD Touch-screen | 9.7" 2048x1536DPI / TFT-LCD Touch-screen | 12.9" 2732x2048 DPI / TFT-LCD Touch-screen |
| Connectivity | USB 2.0 Mini USB 2.0 Wi-Fi | USB 2.0 Mini USB 2.0 Dual Wi-Fi, HDMI 1.4a | USB 2.0 Mini USB 2.0 Dual Wi-Fi, HDMI 1.4a | USB 2.0 Mini USB 2.0 Dual Wi-Fi, HDMI 1.4a | USB 2.0 Mini USB 2.0 Dual Wi-Fi, HDMI 1.4a |
| Wi-Fi | 2.4 GHz | 2.4 GHz | 2.4 GHz | 2.4 GHz | 2.4 GHz |
| Internal Lithium Battery | 7700mAh 3.7V Lithium battery | 11600 mAh 3.7V Lithium battery | 15000 mAh 3.7V Lithium battery | 15000 mAh 3.7V Lithium battery | 18000 mAh 3.7V Lithium battery |
| Weight | 1.35kg | 1.42kg | 1.42kg | 1.42kg | 1.89kg |
| Camera | REAR 8.0 Mega-pixel AF | REAR 16.0 Mega-pixel AF with flash + 5MP FRONT | 16.0 Mega-pixel AF with flash | 16.0 Mega-pixel AF with flash | 16.0 Mega-pixel AF with flash |
| Oscilloscope | Optional Upgrade | ||||
| Multimeter | |||||
| Waveform Generator | |||||
| CAN Check | |||||
| Repair Assist | |||||
| Tech Bulletins | |||||
| DTC Analysis | |||||
| Relevant Cases | |||||
| System Topology | |||||
| Split Screen Function for same time Diag/Scope View | |||||
| ECU Coding with J2534 Included | |||||
| Coverage of European, US-American Asian vehicles | |||||
| Auto VIN reading | |||||
| MaxiFix Cloud System information | |||||
| Online Updates | |||||
| D-PDU Protocol Support | |||||
| RP1210 Protocol Support | |||||
| J2534 Protocol Support | |||||
| CANFD Protocol Support | |||||
| DoIP Protocol Support | |||||
| Docking Station | |||||
| ALL Modules - Chassis/Power Train/Body etc | |||||
| Read & Clear Diagnostic Fault Codes | |||||
| SAS/ABS/BMS/DPF Service Functions | |||||
| EPB & Steering Angle Calibration | |||||
| Service Mileage/Interval Reset | |||||
| Adaptions | |||||
| Actuation Testing | |||||
| Upgradable to ADAS | |||||
| Remote Expert | |||||
| Upgradeable to Borescope | |||||
| Upgrade with Battery Test Accessory | Optional Upgrade | Optional Upgrade | Optional Upgrade | Optional Upgrade | Optional Upgrade |
| Battery Analysation | Optional Upgrade | Optional Upgrade | |||

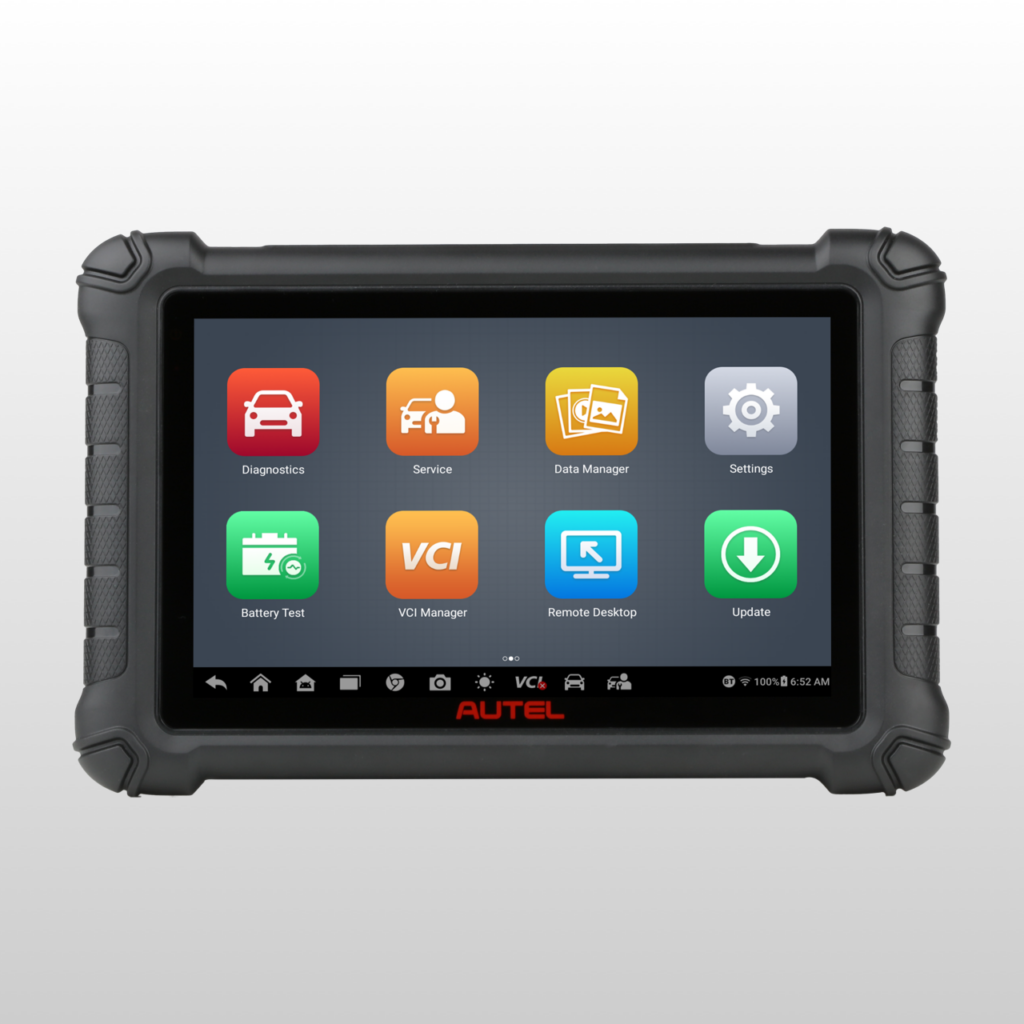

MaxiDAS DS900 EUBT
£995.00 excl. VAT
- CPU
- Rockchip RK3566 Quad corex 4 x 1.8GHz
- Operating System
- Android 11
- Device Memory
- 64GB SSD / 4GB RAM
- Captive Touch-screen
- 8" 1024x768DPI / TFT-LCD Touch-screen
- Connectivity
- USB 2.0 Mini USB 2.0 Wi-Fi
- Wi-Fi
- 2.4 GHz
- Internal Lithium Battery
- 7700mAh 3.7V Lithium battery
- Weight
- 1.35kg
- Camera
- REAR 8.0 Mega-pixel AF
- Oscilloscope
- Multimeter
- Waveform Generator
- CAN Check
- Repair Assist
- Tech Bulletins
- DTC Analysis
- Relevant Cases
- System Topology
- Split Screen Function for same time Diag/Scope View
- ECU Coding with J2534 Included
- Coverage of European, US-American Asian vehicles
- Auto VIN reading
- MaxiFix Cloud System information
- Online Updates
- D-PDU Protocol Support
- RP1210 Protocol Support
- J2534 Protocol Support
- CANFD Protocol Support
- DoIP Protocol Support
- Docking Station
- ALL Modules - Chassis/Power Train/Body etc
- Read & Clear Diagnostic Fault Codes
- SAS/ABS/BMS/DPF Service Functions
- EPB & Steering Angle Calibration
- Service Mileage/Interval Reset
- Adaptions
- Actuation Testing
- Upgradable to ADAS
- Remote Expert
- Upgradeable to Borescope
- Upgrade with Battery Test Accessory
- Optional Upgrade
- Battery Analysation
- Optional Upgrade
MaxiSYS MS906S Pro EU
£1,795.00 excl. VAT
- CPU
- Qualcomm Octa-Core 2.3GHz + 1.7GHz
- Operating System
- Android 10
- Device Memory
- 128GB SSD / 4GB RAM
- Captive Touch-screen
- 8" 1920x1200DPI / TFT-LCD Touch-screen
- Connectivity
- USB 2.0 Mini USB 2.0 Dual Wi-Fi, HDMI 1.4a
- Wi-Fi
- 2.4 GHz
- Internal Lithium Battery
- 11600 mAh 3.7V Lithium battery
- Weight
- 1.42kg
- Camera
- REAR 16.0 Mega-pixel AF with flash + 5MP FRONT
- Oscilloscope
- Optional Upgrade
- Multimeter
- Waveform Generator
- CAN Check
- Repair Assist
- Tech Bulletins
- DTC Analysis
- Relevant Cases
- System Topology
- Split Screen Function for same time Diag/Scope View
- ECU Coding with J2534 Included
- Coverage of European, US-American Asian vehicles
- Auto VIN reading
- MaxiFix Cloud System information
- Online Updates
- D-PDU Protocol Support
- RP1210 Protocol Support
- J2534 Protocol Support
- CANFD Protocol Support
- DoIP Protocol Support
- Docking Station
- ALL Modules - Chassis/Power Train/Body etc
- Read & Clear Diagnostic Fault Codes
- SAS/ABS/BMS/DPF Service Functions
- EPB & Steering Angle Calibration
- Service Mileage/Interval Reset
- Adaptions
- Actuation Testing
- Upgradable to ADAS
- Remote Expert
- Upgradeable to Borescope
- Upgrade with Battery Test Accessory
- Optional Upgrade
- Battery Analysation
- Optional Upgrade
MaxiSYS MS909
£2,995.00 excl. VAT
- CPU
- Samsung Exynos 8859v Octa-Core 2.3GHz + 1.7GHz
- Operating System
- Android 7.0
- Device Memory
- 128GB SSD / 4GB RAM
- Captive Touch-screen
- 9.7" 2048x1536DPI / TFT-LCD Touch-screen
- Connectivity
- USB 2.0 Mini USB 2.0 Dual Wi-Fi, HDMI 1.4a
- Wi-Fi
- 2.4 GHz
- Internal Lithium Battery
- 15000 mAh 3.7V Lithium battery
- Weight
- 1.42kg
- Camera
- 16.0 Mega-pixel AF with flash
- Oscilloscope
- Multimeter
- Waveform Generator
- CAN Check
- Repair Assist
- Tech Bulletins
- DTC Analysis
- Relevant Cases
- System Topology
- Split Screen Function for same time Diag/Scope View
- ECU Coding with J2534 Included
- Coverage of European, US-American Asian vehicles
- Auto VIN reading
- MaxiFix Cloud System information
- Online Updates
- D-PDU Protocol Support
- RP1210 Protocol Support
- J2534 Protocol Support
- CANFD Protocol Support
- DoIP Protocol Support
- Docking Station
- ALL Modules - Chassis/Power Train/Body etc
- Read & Clear Diagnostic Fault Codes
- SAS/ABS/BMS/DPF Service Functions
- EPB & Steering Angle Calibration
- Service Mileage/Interval Reset
- Adaptions
- Actuation Testing
- Upgradable to ADAS
- Remote Expert
- Upgradeable to Borescope
- Upgrade with Battery Test Accessory
- Optional Upgrade
- Battery Analysation

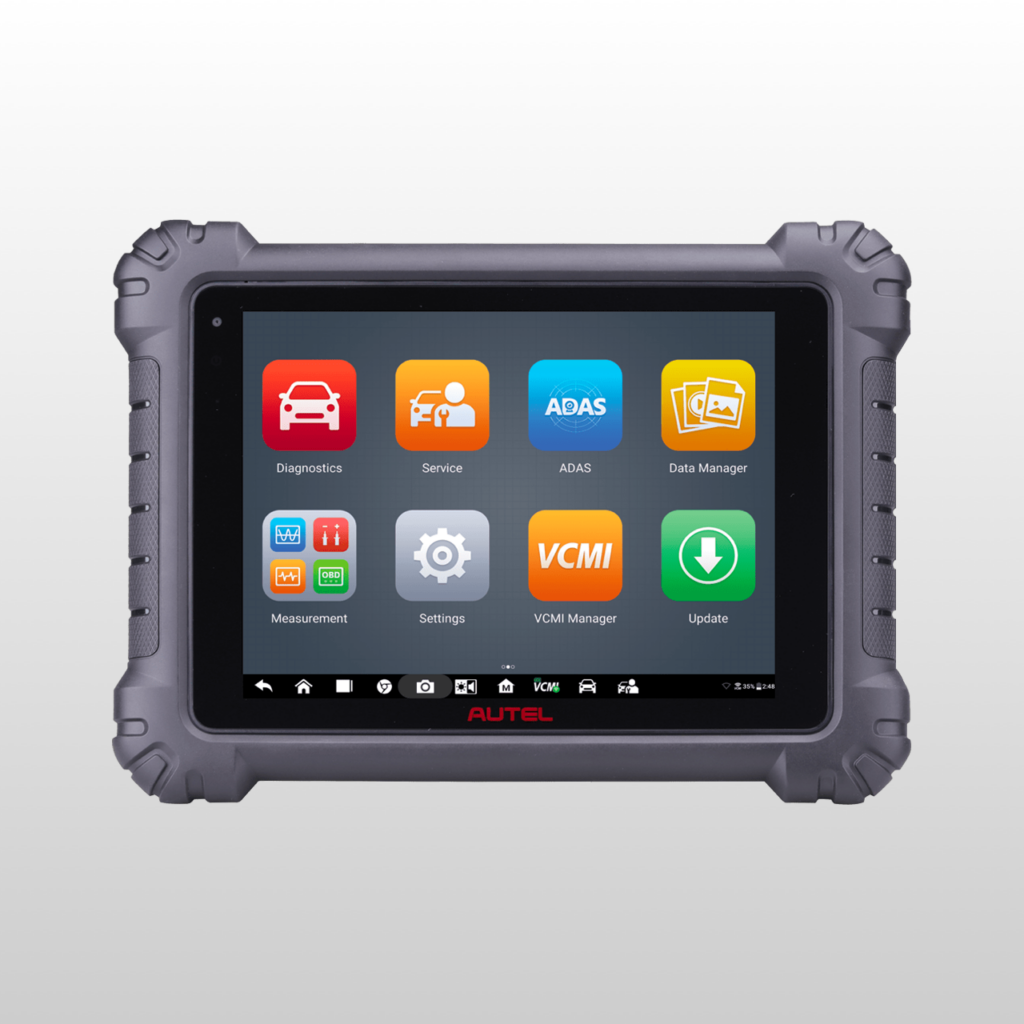

MaxiSYS MS919
£3,995.00 excl. VAT
- CPU
- Samsung Exynos 8859v Octa-Core 2.3GHz + 1.7GHz
- Operating System
- Android 7.0
- Device Memory
- 128GB SSD / 4GB RAM
- Captive Touch-screen
- 9.7" 2048x1536DPI / TFT-LCD Touch-screen
- Connectivity
- USB 2.0 Mini USB 2.0 Dual Wi-Fi, HDMI 1.4a
- Wi-Fi
- 2.4 GHz
- Internal Lithium Battery
- 15000 mAh 3.7V Lithium battery
- Weight
- 1.42kg
- Camera
- 16.0 Mega-pixel AF with flash
- Oscilloscope
- Multimeter
- Waveform Generator
- CAN Check
- Repair Assist
- Tech Bulletins
- DTC Analysis
- Relevant Cases
- System Topology
- Split Screen Function for same time Diag/Scope View
- ECU Coding with J2534 Included
- Coverage of European, US-American Asian vehicles
- Auto VIN reading
- MaxiFix Cloud System information
- Online Updates
- D-PDU Protocol Support
- RP1210 Protocol Support
- J2534 Protocol Support
- CANFD Protocol Support
- DoIP Protocol Support
- Docking Station
- ALL Modules - Chassis/Power Train/Body etc
- Read & Clear Diagnostic Fault Codes
- SAS/ABS/BMS/DPF Service Functions
- EPB & Steering Angle Calibration
- Service Mileage/Interval Reset
- Adaptions
- Actuation Testing
- Upgradable to ADAS
- Remote Expert
- Upgradeable to Borescope
- Upgrade with Battery Test Accessory
- Optional Upgrade
- Battery Analysation

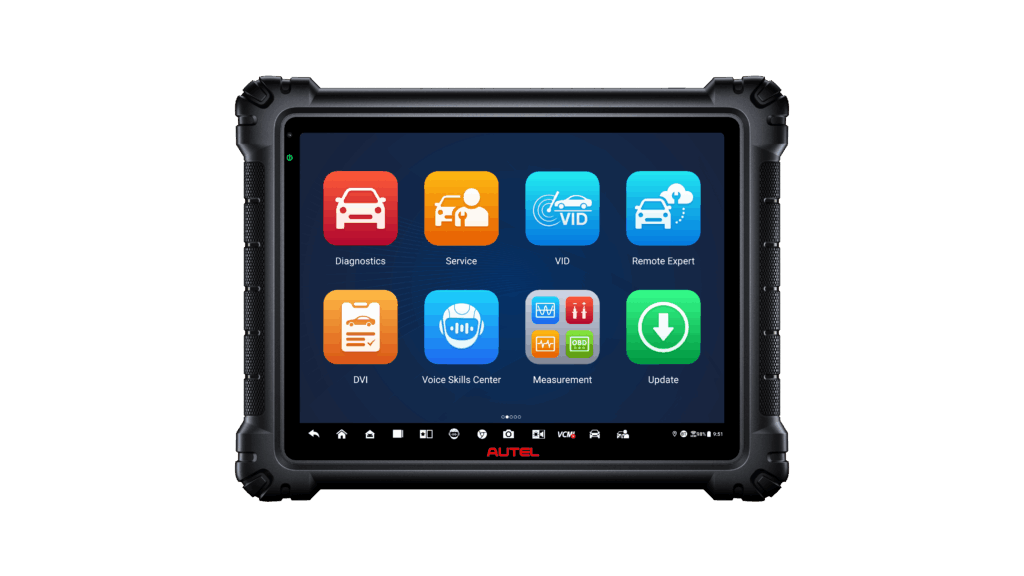

MaxiSYS Ultra
£5,250.00 excl. VAT
- CPU
- Samsung Exynos 8859v Octa-Core 2.3GHz + 1.7GHz
- Operating System
- Android 7.0
- Device Memory
- 256GB SSD / 4GB RAM
- Captive Touch-screen
- 12.9" 2732x2048 DPI / TFT-LCD Touch-screen
- Connectivity
- USB 2.0 Mini USB 2.0 Dual Wi-Fi, HDMI 1.4a
- Wi-Fi
- 2.4 GHz
- Internal Lithium Battery
- 18000 mAh 3.7V Lithium battery
- Weight
- 1.89kg
- Camera
- 16.0 Mega-pixel AF with flash
- Oscilloscope
- Multimeter
- Waveform Generator
- CAN Check
- Repair Assist
- Tech Bulletins
- DTC Analysis
- Relevant Cases
- System Topology
- Split Screen Function for same time Diag/Scope View
- ECU Coding with J2534 Included
- Coverage of European, US-American Asian vehicles
- Auto VIN reading
- MaxiFix Cloud System information
- Online Updates
- D-PDU Protocol Support
- RP1210 Protocol Support
- J2534 Protocol Support
- CANFD Protocol Support
- DoIP Protocol Support
- Docking Station
- ALL Modules - Chassis/Power Train/Body etc
- Read & Clear Diagnostic Fault Codes
- SAS/ABS/BMS/DPF Service Functions
- EPB & Steering Angle Calibration
- Service Mileage/Interval Reset
- Adaptions
- Actuation Testing
- Upgradable to ADAS
- Remote Expert
- Upgradeable to Borescope
- Upgrade with Battery Test Accessory
- Optional Upgrade
- Battery Analysation
Product Features
- Android 7.0
- 2,3GHz + 1,7Ghz Samsung Exnos 8895v Octa-Core
- 128GB internal memory
- 4GB RAM
- 9.7" 2048 x 1536 TFT-LCD Corelle Glass
- Ultra fast power on
- 15,000mAh Lithium-Polymer Battery
- Oil and Water screen Resistant
- DoIP and CAN-FD Compliant
- Remote Expert Compliant
- Secure Gateway approved by Vehicle Manufacturers
Product Specification
- Operating System: Android 7.0
- Processor: Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
- Memory: 4GB RAM & 128GB On-board Memory
- Display: 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
- Connectivity: WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (TWO USB HOST Type A, ONE USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
- Camera: Rear: 16 Megapixel, Autofocus with Flashlight, Front: 5.0 Megapixel
- Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
- Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jac
- Power and Battery: 15000mAH 3.8V lithium-polymer battery, Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
- Input Voltage: 12V/3A Adapter
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Storage Temperature: -20 to 60°C (-4 to 140°F)
- Dimensions(W x H x D): 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
- Weight: 1.66kg (3.66 lb.)
- Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
