MaxiCHARGER 80 kW Commercial DC Fast with Payter/Nayax

Product information

£25,995.00 excl. VAT

Product Description

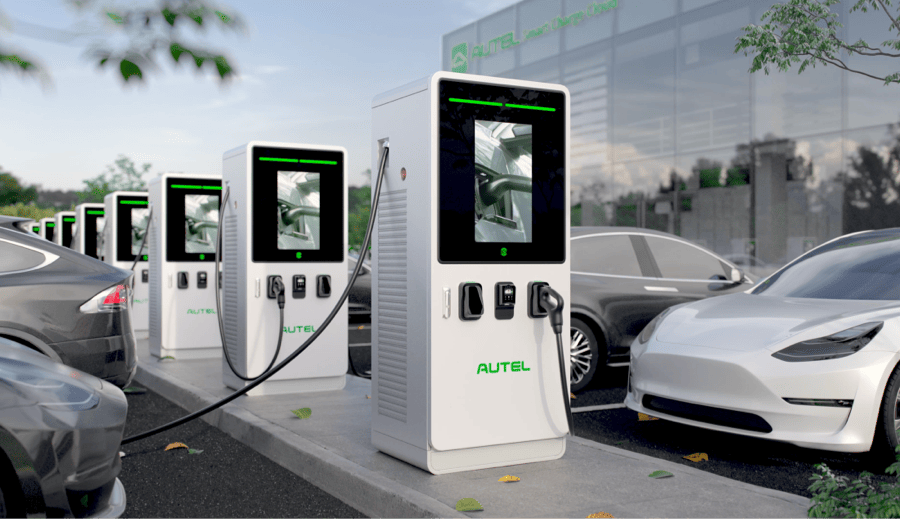

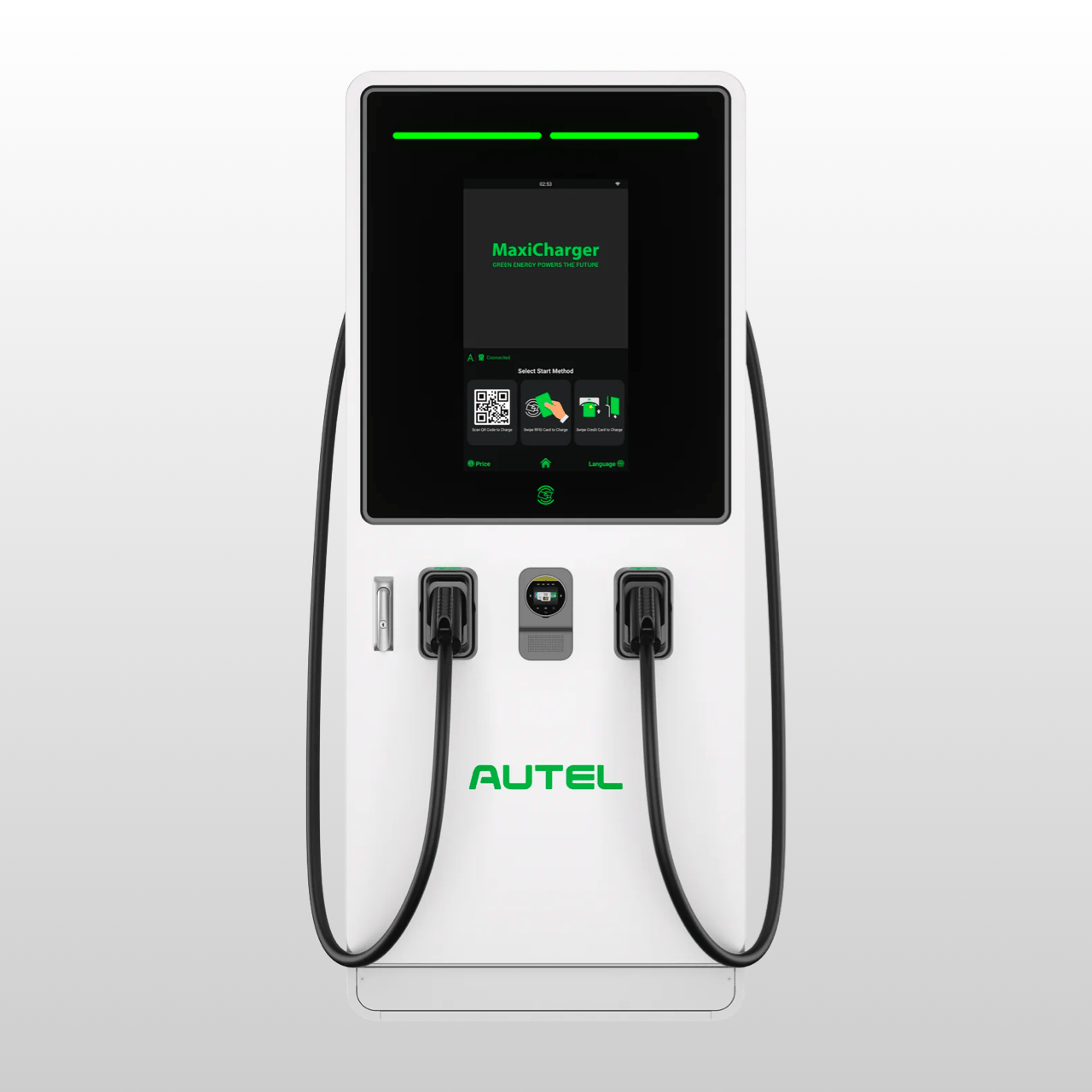

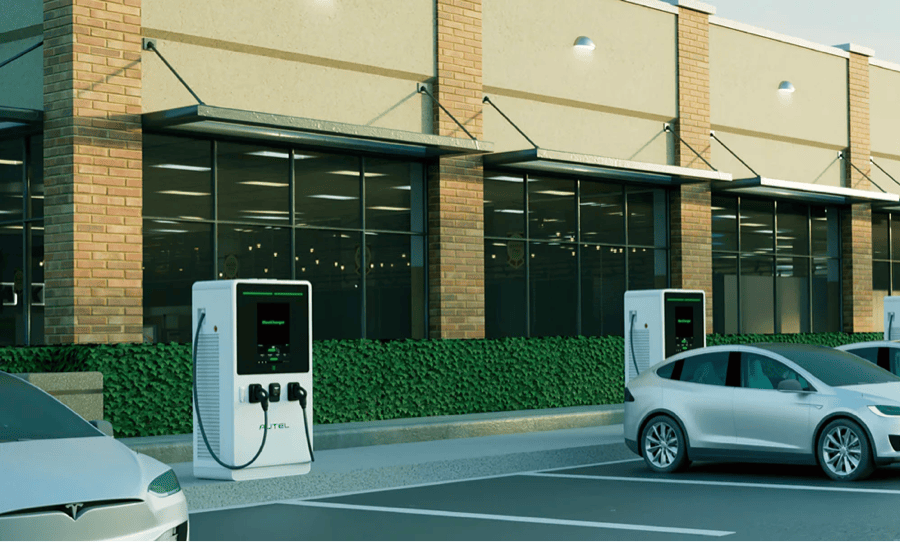

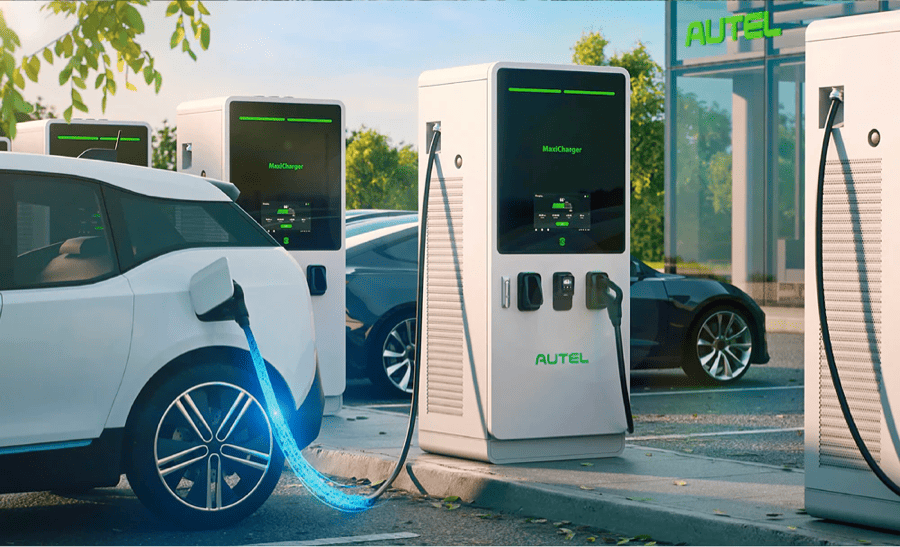

The Autel MaxiCharger DC Fast is an exceptionally swift DC charger meticulously crafted to meet the requirements of charge point operators and businesses with substantial charging demands.

This trustworthy and resilient DC fast charger is proficient in charging all electric vehicles available in the market.

Featuring a spacious 27-inch touchscreen equipped with advertising display capabilities, it presents a lucrative opportunity for generating additional revenue.

The Autel MaxiCharger DC Fast is an exceptionally swift DC charger meticulously crafted to meet the requirements of charge point operators and businesses with substantial charging demands.

This trustworthy and resilient DC fast charger is proficient in charging all electric vehicles available in the market.

Featuring a spacious 27-inch touchscreen equipped with advertising display capabilities, it presents a lucrative opportunity for generating additional revenue.

The installation process is straightforward, and its remote update and diagnostic capabilities simplify maintenance and servicing.

Optional Payter/Nayax payment system £645.

Contact Us →

Product Features

  • Charger, Cloud BMS, and VCI combine to offer triple protection, real-time big data analysis, and multiple safety warnings, ensuring a secure charging environment.
  • Employing a health-conscious charging mode to prevent overcharging and enhance battery safety.
  • Constantly monitoring the real-time status of EV batteries to prevent thermal runaway.
  • Our cutting-edge AI algorithm extends battery life by up to 20%.
  • Safeguarding EV batteries through the use of a health-conscious charging mode.
  • Compatible with 99.5% of EV models, boasting a remarkable one-time successful charging rate of up to 99%.
  • Reaches a peak conversion efficiency of up to 96% with the Huawei HiCharger DC fast charging module.
  • Facilitates remote management through Autel Charge.
  • Enables remote updates and diagnostics.
  • Incorporates a self-developed SaaS platform management system.

Product Specification

User Interface

  • Screen type: Type 27-inch LCD touchscreen (15.6-inch LCD touchscreen optional)
  • Status display: LED/LCD/App
  • Connectivity: 4G, Bluetooth, WLAN, Ethernet
  • Communication protocols: OCPP 1.6J (can be upgraded to OCPP 2.0.1 later)
  • User authentication: APP, RFID card, credit card (optional)
  • Software update: OTA updates via web portal

DC output connector

  • Charging mode: Mode 4: CCS2
  • Output power: 80 kW
  • Output voltage: 150-1000 V
  • Output current: CCS2:Standard: 200A; Optional 300A (nominal), 400 A (max) CHAdeMo: 125 A or 200 A
  • Number of outputs: 2*CCS2 or 1*CCS2+1*CHAdeMO; 1*AC socket(Optional)
  • Peak efficiency: ≥ 96%

AC output connector

  • Grounding system: 3P, N, PE
  • Input voltage: 3-phase 400V AC±15 %
  • Input frequency: 50 Hertz
  • Power factor: ≥0.98
  • Harmonic distortion: (THDi) ≤ 5%

Certification and Standards

  • Safety and Compliance: EN 61851-1, EN 61851-23, EN 61851-21-2, ISO 15118 Autostart
  • Certification: CE, EMC Class A(Class B optional), Eichrecchtskonform (Optional)
  • User interface: Autel charging APP; Autel Charger Cloud
  • Warranty: 24 months, warranty extension possible
