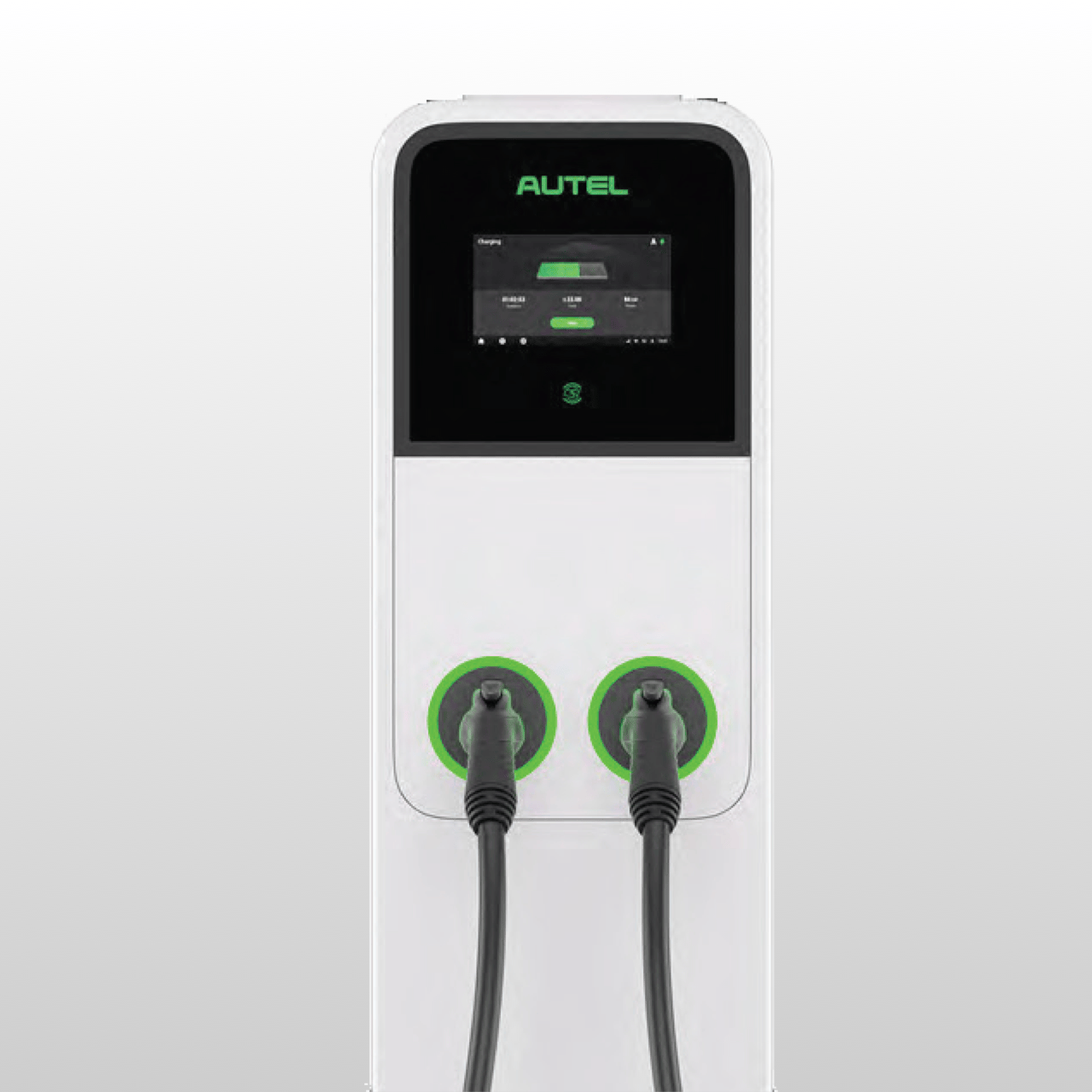

MaxiCHARGER 22k kW Commercial AC Ultra (Wall Mounted) with Payter/Nayax

Product information

£3,645.00 excl. VAT

Product Description

The MaxiCharger AC Ultra stands as the world's foremost AC charger, boasting an impressive power output of 22 kilowatts. This means that two vehicles can simultaneously charge, each receiving a rapid 22-kilowatt AC charge. It is an excellent choice for businesses seeking a sophisticated EV charging solution for their employees, customers, and guests.

The MaxiCharger AC Ultra is fully OCPP compliant and features an eight-inch LCD touchscreen, an IP54-rated enclosure, an RFID card reader, and a range of customization options. These options include a credit card reader, a pedestal, energy meters, and the opportunity to customize the charger with your logo.

Furthermore, the MaxiCharger AC Ultra provides businesses with a multitude of revenue-generating possibilities through Autel's cloud-based portal. These include offering charge rate discounts based on customer profiles, whether they are first-time users or loyal customers, and segmenting drivers into groups, such as taxi or ride-hailing service drivers. Additionally, the charger allows for the monetization of programmatic advertising.

The applications of the MaxiCharger AC Ultra are limitless. Fleets, schools, apartments, parking lot owners, and housing associations can easily utilize the Autel Cloud to establish driver groups, determine when to monetize, and decide whether to charge guests or provide free or discounted charging services.

Contact Us →

Product Features

  • Up to 640kW of power (Hoster)
  • A 10 min charge equates to 400 km of range
  • Max. 650A liquid-cooling & low-temp fast charging
  • Charge 8 vehicles simultaneously
  • Maximum output voltage of up to 950V
  • With an 8/15.6-inch LCD touch screen
  • POS terminals simplify the payment process
  • Ideal solution for fleet and bus charging requirements

Product Specification

Product Specification

  • Charging mode: Mode 3
  • Input/output power rating and current: Single phase up to 2*7.4kW/32A; Three phase up to 2*22kW/32A
  • Input/output voltage: 230V±15%, single phase; 400V±15%, three phase; 50Hz(UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz)
  • Network type: TT, TN, IT
  • Connector type: IEC 62196 Type 2 Socket or Socket with shutter
  • Residual current detection: AC 30mA + DC 6mA
  • Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
  • Card reader: ISO 15693, ISO 14443
  • Power measurement accuracy: +/- 1.0%; Build-in MID Certified meter

AC output connector

  • Grounding system: 3P, N, PE
  • Input voltage: 3-phase 400V AC±10 %
  • Input frequency: 50 Hertz
  • Power factor: ≥0.99
  • Harmonic distortion: (THDi) ≤ 5%

General Features

  • IP rating: IP54
  • Operating altitude: 2,000 m
  • Operating temperature range: -40℃~+55℃
  • Storage temperature range: -40℃~+85℃
  • Mounting : Wall or floor standing using a pedestal
  • Dimensions (H × W × D) : 625 x 320 x 170mm

User Interface

  • Status indication: LED/APP/LCD (8 inch touch screen, 1280*720)
  • User interface: Autel Charge APP; Autel Charge Cloud
  • Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
  • Communication protocols: OCPP 1.6J (Can be upgraded OCPP 2.0.1 later)
  • User authentication: APP, RFID card, Credit Card (Optional)
  • Software update : OTA updates via web portal

Certification and Standards

  • Safety and Compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
  • Certification: CE (TUV), Eichrechtskonform (Optional)
  • Warranty : 36 months, warranty extension possible
