MaxiCharger AC Ultra Dual 22kW

Product information

£1,600.00 excl. VAT

Product Description

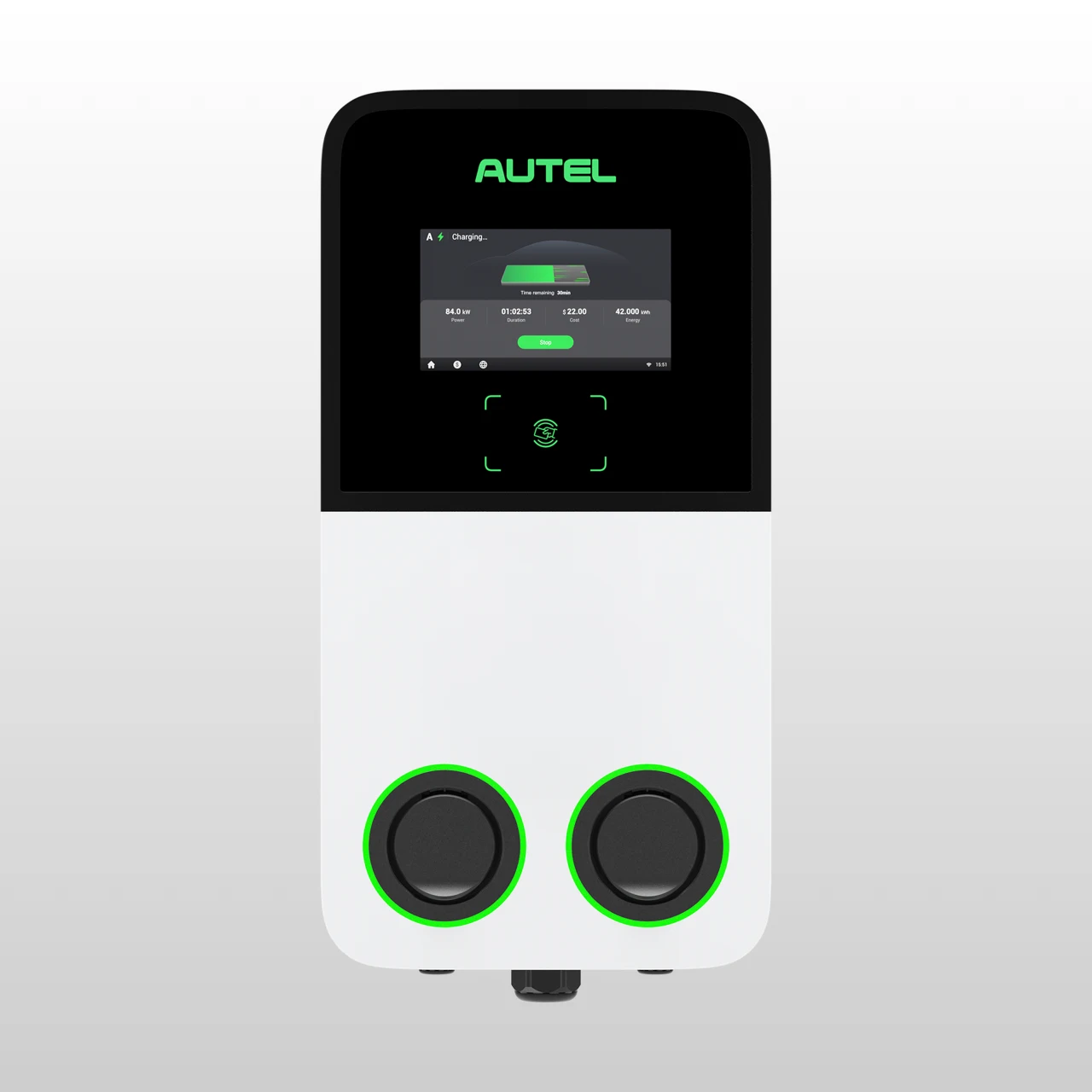

The Autel MaxiCharger AC Ultra is a powerful commercial EV charging solution capable of charging two vehicles simultaneously at up to 22 kW per port.

Designed for workplaces, retail parks, hospitality venues, residential developments and public charging locations, it combines fast AC charging with flexible payment options, intelligent power management and a durable, space-saving design.

At full output, the AC Ultra can deliver up to 140 km of additional range in 60 minutes, depending on the vehicle and charging conditions. ISO 15118 Plug & Charge support also helps create a faster, more convenient charging experience for drivers

Buy Now Request Installer/CPO Pricing

Product Features

Dual 22kW Charging Ports
Provides fast AC charging for two electric vehicles simultaneously, ideal for public use.

Robust and Weather-Resistant Design
Rated IP54 and IK10 for protection against dust, water, and vandalism.

Optional Payment Terminal
Enables secure, user-friendly payment functionality, ideal for commercial installations.

Compact Pedestal Mounting
Space-efficient design with integrated space for a meter box, easy to install in public locations.

8-Inch Touchscreen Display
Offers an intuitive user interface for session information and supports advertising content for added revenue.

Flexible Connectivity
Includes 4G, Wi-Fi, Ethernet, and Modbus to suit a wide range of network environments.

Back Office Compatible
Supports OCPP 1.6J and 2.0.1 protocols for smooth integration with compliant management systems.

MID-Certified Energy Meter
Ensures accurate energy measurement and billing compliance.

AFIR-Compliant
Meets UK & EU requirements for accessibility, information provision, and interoperability.

Product Specification

Product Information

  • Charging mode: Mode 3
  • Input/output power rating and current: Three-phase, up to 2 × 22 kW / 32 A
  • Input/output voltage: 400 V ±15%, three-phase, 50 Hz
  • Network type: TT, TN and IT
  • Connector type: IEC 62196 Type 2 socket or socket with shutter
  • Residual current detection: AC 30 mA + DC 6 mA
  • Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection and PME protection for the UK
  • Card reader: ISO 15693 and ISO 14443
  • Power measurement accuracy: ±1.0%
  • Energy meter: Built-in MID-certified meter

General Characteristics

  • Protection ratings: IP54 and IK10
  • Maximum operating altitude: 2,000 m
  • Operating temperature: −40°C to +55°C
  • Storage temperature: −40°C to +85°C
  • Mounting options: Wall-mounted or floor-mounted using a pedestal
  • Dimensions: 625 × 320 × 170 mm (H × W × D)

User Interface and Connectivity

  • Status indication: LED, mobile app and LCD
  • Touchscreen: 8-inch display with 1280 × 720 resolution
  • User platforms: Autel Charge App and Autel Charge Cloud
  • Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, CAN and RS485
  • Communication protocol: OCPP 1.6J
  • Protocol upgrade: Upgradeable to OCPP 2.0.1
  • User authentication: Mobile app and RFID card
  • Optional payment: Credit card with Nayax POS
  • RFID compatibility: MIFARE, NFC, Calypso, Ultralight, PayPass and HID
  • Software updates: OTA updates through the web portal

Certification and Standards

  • Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479 and IEC 62955
  • Certification: CE (TÜV)
  • Optional certification: Eichrechtskonform
  • UK compliance: Complies with UK smart-charging regulations

Warranty and Support

  • Standard warranty: 36 months
  • Warranty extension: Available
  • Local support: Technical assistance for installation and commissioning
